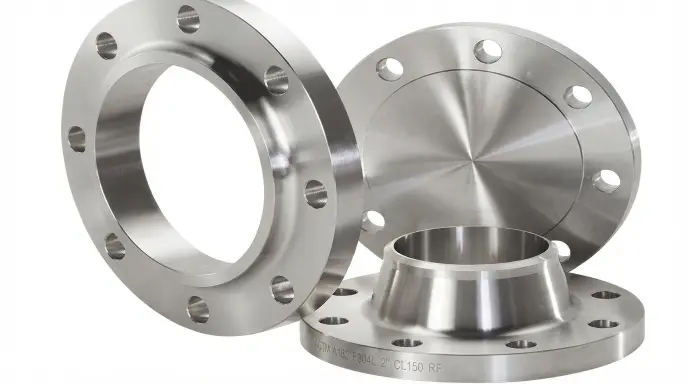

Shyam Metals & Alloys is a leading, ISO-certified SS 304 Flanges Manufacturer in India, utilizing state-of-the-art closed-die forgings and precision CNC machining centers to produce high-grade pipe connection interfaces. Our SS 304 flanges are built to resist atmospheric oxidation and process-line stress, ensuring leak-proof sealing, structural rigidity, and optimal alignment in industrial pipeline configurations.
As a recognized SS 304 Flanges Stockist in India, we maintain a comprehensive ready inventory spanning diverse flange types—such as Slip-On (SORF), Weld Neck (WNRF), Blind (BLRF), Socket Weld (SWRF), and Threaded profiles. Our strategically located stockyards facilitate urgent regional dispatches, ensuring your processing loops, utility runs, or refinery expansions operate without material delays.
Choosing Shyam Metals & Alloys as your dedicated SS 304 Flanges Supplier in India ensures you receive fully traceable forged components with detailed Mill Test Certificates (MTC) matching EN 10204 3.1 standards. We execute custom boring, face-finishing, and multi-hole configurations to provide direct fitment with your critical flow controls.
Technical Quick-View
- Material Grade: SS 304 / UNS S30400 (Forged)
- Forged Block Density: 7.93 g/cm³
- Size Range: 1/2" to 48" NB
- Pressure Ratings: Class 150# to 2500#
Technical Specifications & Standards
| Dimensional Standards | ASME B16.5, ASME B16.47 Series A & B, MSS-SP-44, EN 1092-1, DIN 2527 / 2633 |
| Alloy Configurations | ASTM A182 F304 (Forged Fittings), ASTM A240 304 (Plate Flanges), SS 304L (Low Carbon) |
| Available Flange Types | Slip-On (SORF), Weld Neck (WNRF), Blind (BLRF), Socket Weld (SWRF), Threaded (NPT), Lap Joint, Orifice |
| Flange Face Types | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ), Male & Female, Tongue & Groove |
| Pressure Ratings | Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500, Class 2500, PN6 to PN64 |
| Face Finish Options | Stock Finish (125-250 AARH), Spiral Serrated, Concentric Serrated, Smooth Finish (< 63 AARH) |
| Testing Protocols | Ultrasonic Test, Hydrostatic testing, Magnetic Particle Examination, Positive Material Identification (PMI) |
| Traceability Certifications | MTC as per EN 10204 3.1, NACE MR0175 compliance, Third Party Inspection Reports (Lloyds, TUV, SGS) |
Chemical Profile (ASTM A182 / F304)
| Element | SS 304 (%) | SS 304L (%) |
|---|---|---|
| Carbon (C) | 0.08 max | 0.030 max (Carbon Restricted) |
| Chromium (Cr) | 18.00 – 20.00 | 18.00 – 20.00 (Corrosion Protection) |
| Nickel (Ni) | 8.00 – 10.50 | 8.00 – 12.00 (Austenitic Matrix) |
| Manganese (Mn) | 2.00 max | 2.00 max |
| Silicon (Si) | 1.00 max | 1.00 max |
| Phosphorus (P) | 0.045 max | 0.045 max |
Forged Mechanical Capabilities
| Tensile
Strength Minimum ultimate tensile capacity |
515 MPa (75,000 psi) |
| Yield Strength 0.2% Offset displacement limit |
205 MPa (30,000 psi) |
| Elongation
Capacity Minimum ductility / stretch metric |
30% Min |
| Typical
Hardness Hardness thresholds (Brinell / Rockwell) |
201 HBW / 92 HRB max |
Key Advantages of Our SS 304 Flanges
Exceptional Forging Quality
Forged under strict thermal regimes to guarantee uniform grain flow, zero micro-porosity, and reliable structural integrity.
Perfect Sealing Faces
Flange sealing surfaces are machined with precise concentric or spiral serrations to assure a secure, positive seal under pressure.
Mill Certification & Traceability
Supplied with certified test reports demonstrating chemical makeup, hardness readings, and ASME dimensional compliance.
Interactive SS 304 Flange Weight Calculator
Select your flange specification below. This calculator uses standard ASME B16.5 dimensional references combined with a density of 7.93 g/cm³ (specifically adjusted for Stainless Steel 304/304L alloys) to give an approximate theoretical weight.
Figures are theoretical estimates based on standard ASME B16.5 approximations for reference only; final certified weights are confirmed at the time of order against the applicable dimensional standard.
Typical Industrial Applications
- Chemical Processing: Refineries, pharmaceutical flow lines, and transport pipelines dealing with organic chemicals.
- Food & Beverage Processing: Hygienic processing pipelines where cleanability, product safety, and zero oxidation are mandatory.
- Water Treatment & Desalination: High-volume municipality networks, water storage hubs, and light saline reverse osmosis setups.
- Power Generation Plants: Steam line connections, non-critical process loops, cooling water networks, and auxiliary pipelines.
